Central vacuum systems for all industries

Central cleaning systems are now an integral part of modern industrial sanitation. For 30 years, Suomen Imurikeskus Oy has manufactured and installed Eurovac central vacuum systems for power plants and other industries. Eurovac central vacuum cleaners are made to order for any destination, for example in the following industries:

  • Power plants
  • Metal industry
  • Wood industry
  • Paper industry
  • Concrete industry
  • Plastics industry
  • Process industry
  • Food industry

Central cleaning systems are now an integral part of modern industrial sanitation. For 30 years, Suomen Imurikeskus Oy has manufactured and installed Eurovac central vacuum systems for power plants and other industries. Eurovac central vacuum cleaners are made to order for any destination.

Central vacuum systems are dimensioned and made to suit the customer’s needs. The installation is performed on an agreed-upon basis on a turnkey basis. The functionality of the equipment is based on solid experience and continuous product development.

Things to consider in planning:

  • What kind of debris is being vacuumed (dust, waste or metal)?

  • How much is vacuumed and the size of the area to be vacuumed

  • Location and model of central processing unit / dust container

  • Number of concurrent users

  • Material of piping and suction boxes (steel, stainless steel, HST), route of piping and location of suction boxes

Questions will be answered by system sales experts

Ari Alakruuvi

Suction units

Our central vacuum units are custom designed to meet the spesific needs. Side channel blower is used as the suction unit in smaller systems. High pressure rotary piston blower is used as the suction units in larger systems, even more than 1000 metres long piping.

Demountable suction unit

The device is usually equipped with a 45 kW electric rotary piston suction unit. There are many power options. The device is also available with its own diesel engine, as it can be used in places where there is no electricity available or the power supply is so small that it is not enough to achieve the required suction power.

Filters in three blocks and cleaning of filters based on efficient recirculation.

The device can be easily moved between possible different objects. The high capacity enables long pipelines (over 1000 m) as well as the vacuuming of very heavy goods.

  • The volume of the rubbish bin is 13 m3.
  • The filter unit is equipped with hose filters with a filter area of ​​30 m2.
  • The filter cleaning works automatically on the suction unit’s own power based on the counter-suction.
  • Container capacities with a 37-75 kW electric motor and different starting methods as required
  • HEPA13 class post-filtration as standard.
  • Diesel engine power up to 300 kW.

Examples of downloadable materials:

  • powder
  • peat
  • moss
  • sand,
  • macadam
  • clay
  • villa
  • concrete and crushed brick
  • dust
  • lecasora
  • ash, etc.

Front loader suction unit

We manufacture special suction units with front loader fitting according to the customer’s needs.

Tipping vacuum

The device is suitable for vacuuming many different types of debris, such as construction waste, concrete dust, ash and metal chips.

A suction hose of up to 125 mm can be used as a suction hose and can be connected as a central vacuum unit to a central vacuum line of up to 127 mm, depending on the power option.

All units are equipped with remote vacuum start readiness.
The filter unit can be equipped with different power options from 22 to 55 kW. Filter cleaning is performed by the suction unit on its own, based on counter-suction in three filter blocks timed separately. The design achieves very efficient filter cleaning even during continuous use.

The waste bin has a 1000 l skipper, which is very easy
empty with a forklift. In this case, the top of the unit is lifted hydraulically and the skipper is emptied with a forklift. All hardware
can also be moved with a fork spike fit.

The device can also be equipped with an ATEX-certified pressure relief membrane or flame arrestor if potentially explosive dust is sucked into the device. In addition, the equipment can be equipped with fire extinguisher equipment.

Powermax mbarm3/hPower supply
22 kW500138063A / 400V
30 kW500168063A / 400V
37 kW5001800125A / 400V
45 kW5002100125A / 400V
55 kW5002250125A / 400V

Eurovac rotary piston blower units

Product code 008130

Eurovac rotary piston units are complete vacuum / blow units. Unit includes high-quality Roots pump, electric motor, belts, silencers and platform. Units can be equipped with extra silencer case.

The most popular models 37 and 45 kW are in store. Commonly the unit are installed to several hundreds of meters long central pipeline system.

Rotary piston units are recommended for heavy loads of debris. We manufacture units to meet custom demands up to 200 kW power.

ModelPowerUnderpressure pAAir flow m3 / h
80V15 kW490 mbar760 m3 / h
100V30 kW490 mbar1310 m3 / h
125V37 kW490 mbar1960 m3 / h
150V45 kW490 mbar2400 m3 / h
175V75 kW490 mbar3960 m3 / h
200V75 kW490 mbar4750 m3 / h

Side duct suction unit

The side duct units are equipped with a 5.5 to 25 kW fan.

Blue line 1000 series central vacuum cleaners

Product code 080009

The filter unit can be equipped with different power options from 3.6 to 25 kW. The vacuum cleaner is equipped with an easy-to-empty, hydraulically openable 600 l waste bin. The suction unit has a 4 m² star filter. The device is equipped with a suction unit and accessories according to the customer’s wishes and needs, such as automatic start-up or weather protection.

The device is suitable for vacuuming many different types of debris, such as construction waste, concrete dust, ash and metal chips. The device is equipped with fork tines and can also be equipped with wheels. A suction hose of up to 102 mm can be used as a suction hose. The device can also be used in the construction industry as a central suction unit during construction.
Emptying takes place, for example, directly on the rubbish bin and adjustable risers are available for the container vacuum cleaner.

  • Dimensions approx .: K 2000 L 1235 P 1470 mm
  • Tanker: 0.6 m3
  • Power: 12.5 kW turbine
  • Power supply: 32 A / 400 V
  • Air flow: 530 m3 / h
  • Vacuum: 295 mbar
  • Tanker: 0.6 m3
  • Power: 5.5 kW turbine
  • Power supply: 16 A / 400 V
  • Air flow: 1200 m3 / h
  • Vacuum: 250 mbar
  • Tanker: 0.6 m3
  • Power 7.2 kW
  • Power supply 16 A / 240 V
  • Air flow: 6630 m3 / h
  • Vacuum: 250 mbar
  • Tanker: 0.6 m3
  • Power: 3.6 kW
  • Vacuum: 280 mbar
  • Air flow: 1050 m3 / h
  • Power supply: 32 A / 400 V
  • Power: 25 kW turbine
  • Tanker: 0.6 m3
  • Vacuum: 440 mbar
  • Air flow: 1310 m3 / h
  • Power supply: 63 A / 400 V

Blue line 200 vacuum with bulk bag loader

Product code 018210

The Eurovac Blue Line 200 central vacuum unit is intended as a central vacuum unit for construction sites and other sites where there is a large amount of debris. Garbage collects in a 200 l large bag, from where it can be easily transported dust-free with a crane or forklift, eg to a waste platform. The vacuum cleaner itself can also be moved to the destination by many different means.

  • Garbage collects in a 200 l big bag
  • Remote start for central vacuum operation
  • Automatic filter cleaning with electric vibrator
  • available with 5.5 – 15 kW side duct fans

Blue line 60 series central vacuum cleaners

Product code 003060

Eurovac Blue Line central vacuums are designed for heavy use. Available with either integrated side channel blower and filtering unit or  separate suction and filtering units.

Vacuum has 60 or 100 liters tank that is easy to empty and  polyester star filter with filtration area 4 m². Manual filter-shaker.

Under request also available with tank that be covered with bin bag. HEPA filter is available under request. Thus filtering efficiency can reach up to 99,97 percent.

Eurovac Blue Line can be used as construction site vacuum. After construction it can be used as a central vacuum unit.

Specifications:

  • Available with 5,5 – 25 kW side channel blower
  • Tank 60 or 100 liters
  • Dimensions 1420 (l) *670 (w) *1500 (h) mm

Center 3010 TS

Product number: 004070

At the heart of the new generation Center TS is the turbine-powered suction motor, which is in a class of its own in terms of power and service life compared to conventional central brush vacuum cleaners. Thanks to the turbine suction motor, the Center TS is also very quiet. It allows the device to be installed in the vicinity of the living areas. Center The suction motor of the TS central suction unit has a service life of at least 15,000 vacuuming hours.

More information:

  • Power: 3000 W
  • Tank: 40 l
  • Vacuum: 270 mbar
  • Air flow: 5800 l / min
  • Sound level: 68 dB
  • Weight: 45 kg
  • Power supply 400V 16 A
  • Dimensions: H 930 mm W 520 mm S 480 mm

E100 central suction unit 9 kW

Central suction unit to be connected to a separate filter unit.
The filter unit is selected separately as required,
eg Eurovac S90.

Simultaneous users 1-4 people. Power adjustment automatically
with a frequency converter between 4-9 kW.

E45 plant central vacuum

Product number: 004120

Special vacuum for objects that require high suction power and durability. For dry and wet dust. Manual filter cleaning with a manual shaker.

Power is sufficient for one user at a time.

More information:

  • Power: 3 kW
  • Tank: 70 l
  • Underpressure: 245 mbar
  • Air flow: 5830 l/min
  • Sound level: 79 dB
  • Weight: 70 kg
  • Power supply 400V 16 A
  • Dimensions: K 930 L 520 S 480 mm

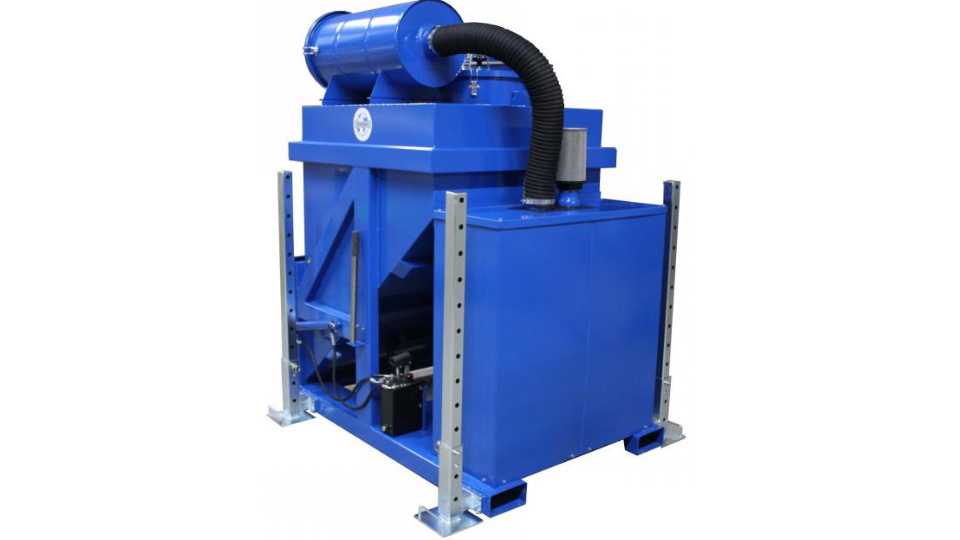

Blue line 200

Product number: 018215

The Eurovac Blue Line 200 vacuum cleaner includes a filter unit, debris tank, side channel blower and starter with frequency converter.

The entire unit can be moved by forklift to the desired location. The unit can also be used as a suction unit for a central vacuum system.

As the filter part of the unit is equipped with its own lifting device, the 200 l waste tank can be easily removed from the unit and emptied by forklift.

The tank is also equipped with a tilting knife. This makes the unit suitable for vacuuming large quantities of even heavier dirt such as sand, metal scrap and shavings.

The filter is equipped with a compressed air filter cleaning system. The filter material is PTFE-coated polyester, making it resistant to small amounts of moisture.

  • Equipped with one side channel blower.

Accessories

  • Wheels
  • Own air compressor
  • Cleaning accessories as required
Power11 kW 400/32A (50 Hz)
AirflowTotal max 1050 m3/h (50 Hz) continuous working pressure max 250 mbar
Remote control 24 V, overfill prevention
CleaningAutomatic filter cleaning with compressed air
StartupDanfoss control centre with variable speed drive
DimensionsH 2000 W 1200 L 2000 mm

Filtering units

Filtering unit with hooklift container

Filtering unit with hooklift container has a rotary piston vacuum unit. Can be equipped with any sized electrical motor, the most popular motor is 45 kW. Under request available also with diesel motor for environments with low electric capacity.

Filtering unit has three filter blocks. Filter cleaning is based on backflow technique.

Thanks to great suction power unit can be used with long pipeline systems (over 1000 m) and vacuuming heavy loads of waste.

Vacuuming materials like saw dust, turf, macadam, clay, insulation, concrete, crushed brick, Leca aggregate etc.

Specifications:

  • Waste container:  13 m³
  • Filtering unit having hose filters with total filtering area  30 m²
  • Automatic filter cleaning using backflow technique
  • Electric motor power: 37- 75 kW, starting technique chosen to meet custom need
  • HEPA13 classified post-filtering
  • Diesel motor power: up to 300 kW

Examples of downloadable materials:

  • powder
  • peat
  • moss
  • sand,
  • macadam
  • clay
  • villa
  • concrete and crushed brick
  • dust
  • lecasora
  • ash, etc.

Filtering unit with front loader pick up pockets

Eurovac filtering units with front loader pick up pockets.

Available also with either separate suction unit or integrated suction and filtering unit. Filter size and type on custom demands.

  • Waste contained 1,5 – 5 m3
  • Filtering area 5 – 20 m2

Filtering unit with tipping container

Filtering unit with 1000 liters skip for central cleaning systems. Filtering unit includes 63 pc hose filters, total filtering area 20 m2.

Filter cleaning is based on backflow technique preseted separately in three different filter blocks. The filtering technique allows filter cleaning during operation. Waste container has hydraulic lift enabling container emptying with forklift.

Unit can be equipped with rotary piston vacuum up to power 75 kW. Unit is movable.

Specification:

  • Filtering area: 20 m2
  • Tank: 1000
  • Filter cleaning based on backflow
  • Dimensions: 2400 (l) x 1200 (w) x 2500 (h) mm

Filtering unit 1400

Eurovac filtering unit 1400 is designed to be used in central vacuum systems for large amounts of waste and several simultaneous users.

Eurovac filtering unit 1400 makes it possible to use 75 kW rotary piston suction unit in central vacuum system. Filter cleaning is based on backflow technique allowing filter cleaning during operation.

Specification:

  • Filtering area either 32 or 24 m2.
  • Can be used with pre-separators
  • Can be equipped with self-cleaning tank using back-washing technique
  • Several possibilities for dust collecting (tank, container, bulk bag etc.)
  • Can be equipped with worktop for maintenance
  • Dimensions: 4000 / 4500 (h) depending on selected filter, 1450 (d) mm

Filtering unit 900

Product code 018035

Eurovac 900 filtering units are designed for fairly large central vacuum systems. With a few simultaneous users.

Eurovac 900 filtering units make it possible to use 45 kW rotary piston suction unit in central vacuum system. Filter cleaning is based on backflow technique allowing filter cleaning during operation.

Specification:

  • Filtering area: 10 or 15 m2.
  • Several possibilities for dust collecting (tank, container, bulk bag etc.)
  • Can be used with pre-separators
  • Can be equipped with self-cleaning tank using back-washing technique
  • Height 2700 or 3200 mm depending on filter, d. 1260 mm.

Filtering unit 580

Product code 018030

Filtering unit 580 is designed for fine duct removal environments like bakeries. Filter cleaning is based on backflow technique allowing filter cleaning during operation.

Specification:

  • Filter cleaning with backflow in two filter blocks
  • Tank: 60 – 200 liters
  • Can be manufactured out of RST or HST steel.
  • Vacuum unit: side channel blower 5,5 -15 kW
  • Can be placed on larger tank with rotary valve

S90 central vacuum filter unit

A separate solid structure of the central vacuum unit Filter unit. Can be combined eg. Eurovac E100 suction unit.

Automatic pneumatic filter cleaning. The device includes your own compressor. Filter Type: cartridge. Easy to empty and spacious 100 l A stainless storage tank with its own wheels.

Maximum power of the suction unit to be connected: 350 MBAR and 16600 l/min.

Pre-separators

Pre-separator with demountable fitting

Product code: 080250

Large pre-separator containers with demountable fittings are manufactured according to the customer’s wishes and dimensioned according to the requirements of the material to be separated.

More information:

  • Sizes 8 – 40 m3
  • compact structure
  • with wire or hook pallet fitting

Pre-separators with front loader fit

Product code: 080100

Eurovac pre-separators for front loaders. We manufacture pre-separator containers of different sizes with front loader adaptations.

More information:

  • sizes 1.5 – 5 m3
  • also RST and HST

Eurovac pre-separator containers

We manufacture pre-separator containers according to customer needs.

Volumes 1 – 40 m3
Vacuum resistance up to 800 mbar
Fits for front loader or demountable, for example

Call to find the right model for your needs.

Tipping pre-separator

Product code 080202

1000 liters or 600 liters tipping pre-separator can be moved with forklift. It is designed for large amounts of dust and sawdust removal attached to central cleaning systems.

Under request available in various sizes and lift systems. Can be used vacuuming e.g. sawdust, shavings, turf, sand dirt, concrete, insulation, ash etc.

Learn more:
Suitable for 38-160mm hoses
Max vacuum duration 500mbar
Dimensions: H 1400 L 1150 W 1640 mm (600 l)
Dimensions: H 1400 L 1150 W 1900 mm (1000 l)
Weight about 300 kg

Cyclone with 200 liter barrel and lifter

Pre-separator cyclone on top of 200 liter barrel. Wall amount cyclone has its own lifter. Thanks to its structure pre-separator works on full range even with barrel getting full of debris. Cyclone is designed for pre-separating fine dust e.g. ash, concrete dust, saw dust and shavings. Adjustable for all size hoses and vacuums.

Specifications:
Air flow: 300-1300 m³/h
Maximum negative pressure: 300 mbar
Hoses that fit: 38, 50, 63 ja 76 mm
Dimensions: 900 x 1250mm

Cyclone pre-separator with trolley

Product code 016210

Cyclone with trolley pre-separates debris to ease the function of the primary filter. Adjustable for d. 38, 50, 63 and 76 mm hoses and all vacuum models.

Specification:
Air flow: 3300-16000 l/min.
Tank: 60 tai 100 l
Maximum negative pressure 300 mbar
Dimensions: 1670 x 990 x 670 mm

Cyclone separator with 53 longopac trolley

Product code 016209

Pre-separates debris with the cyclone principle and thus protects the filters of the actual vacuum cleaner. Garbage collects in an easily emptied garbage bag. The length of the Longopack ™ roll is 20 m and it produces about 18-20 individual bags.

Suitable for 38, 50, 63 or 76 mm hoses.

Learn more:
Air flow 3300-16000 l / min.
Max vacuum 300 mbar
Weight 50 kg

Pipelines & accessories

We have a great selection of pipes, hoses and accessories for clening systems and central vacuum systems.

Vacuum hoses

Product code 011000

  • Conductive and anti-static hoses
  • Wear-resistant polyurethane and rubber vacuum hoses
  • Heat-resistant and steel hoses
  • Corrosion resistant hoses
  • Hoses for food industry

Central vacuum pipelines

Product code 014000

We have a great selection of pipeline parts and accessories. We manufacture vacuum tables, hoods and exhaust walls to meet custom demands.

Ask more.

Hose and accesssory holder

Product code 016000

Wall amount hose and accessory holders made out of galvanized or RST steel. RST steel models are designed for food industry. It is for hoses up to 75 mm and has holder for vacuum wand.

Specification:

  • Width: 600 mm
  • Height: 655 mm
  • Depth: 250 mm
  • Weight: 6 kg

Hose reel with trolley

Product code 016016

Hose reel with 4-wheel trolley. It has two lockable wheels and ball bearing reel. Hose reel is for 50, 63 and 75 mm sized hoses up to 50 metres. It has accessory basket for e.g. nozzles. Hose reel can be customly equipped and installed e.g. on to the wall or in to a van.

Specifications:

  • Dimensions: 970 (h), 720 (w), 960 (l) mm

Nozzles, tools and wands

Product code 012000

Accessory kit includes suction hose with an adapter, floor tool, telescopic wand, dust brush, upholstery tool and crevice tool.

  • Floor nozzles
  • Slit nozzles
  • Dust brushes and garbage nozzles
  • Special nozzles

Questions will be answered by system sales experts

Ari Alakruuvi
