Heavy duty industrial vacuums

Eurovac industrial vacuum cleaners are suitable for, for example, sand, scrap metal, chips, liquids and fine dust were vacuumed in industry and other applications. We also manufacture devices that suit the customer’s needs and are tailored to their wishes. Our Eurovac industrial vacuum cleaners are the right choice when vacuuming power, durability, easy maintenance and good filter properties are required. Eurovac industrial vacuum cleaners are manufactured in Finland.

Product descriptions of models

53 Vacuum with tipping metal tank
53 Tank vacuum with forklift pockets 5,5 kW
53 Tank vacuum with hand crank tipper
53 4800 with hand crank platform
Blue line series
Blue line 200
Blue line 1000 vacuum container
Blue line 1000 TR tractor vacuum cleaner
Eurovac 53
Eurovac 53 battery vacuum
Eurovac 53 small compressed air vacuum
Eurovac 53 trolley
Eurovac 53 trolley compressed air vacuum
Eurovac 53 trolley bagged vacuum
Eurovac 53 tank vacuum
Eurovac 53 compressed air tank vacuum
Eurovac Cube
Eurovac 53 chip vacuum 4800
Eurovac 53 chip vacuum compressed air
Eurovac 53 4800
Tipping vacuum

Clear selection
Request a quote
Tuotenumero: N/A Category:

Description

53 Vacuum with tipping metal tank

Product code 003035

Special vacuum for heavy duty cleaning when suction power and sustainability is needed. Waste container is a 200 liters barrel that can be emptied by forklift thanks to the forklift pockets on the trolley. With 53 Vacuum you can vacuum dry waste mixed with fluids. Waste like shavings, ash, sand etc.

When vacuuming large amount of liquids the machine is equipped with a float body that shuts of the airflow through the machine when the maximum liquid level is reached. Vacuum has a star-filter with filtering area 2 m² and manual filter-shaker. Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Learn more

Power3600 W
Tank200 l
Underpressure250 mbar
Air flow10500 l / min
Sound level84 dB
Filter materialtetratex
Weight120 kg
Power supply16 A 230 V
DimensionsH 1870 W 850 L 1250 mm

53 Tank vacuum with forklift pockets 5,5 kW

Product code 003055

Special vacuum with  for heavy duty cleaning when suction power is needed.

Vacuum is very durable for its three phase motor. It has a star-filter with filtering area 2 m² and manual filter-shaker. HEPA filter is available under request. Thus filtering efficiency can reach up to 99,98 percent. Vacuum has 200 liters waste barrel and either skipping trolley or hank crank tipper. With 53 Tank Vacuum you can vacuum liquids and wet waste simultaneously with dry dust.

Vacuum has forklift pockets and large wheels.

Under request:

  • Shaving basket filter
  • Frequency converter control
  • Faucet

Learn more

Power5500 W
Tank200 l
Underpressure300 mbar
Air flow8830 l / min
Sound level70 dB
Weight150 kg
Hose sizes38, 50 mm
Power supply16 A 400 V
DimensionsH 1870 W 850 L 1250 mm

53 Tank vacuum with hand crank tipper

Product code 003034

Powerful vacuum for heavy duty cleaning. Vacuum has a star-filter with filtering area 2 m² and manual filter-shaker. Automatic filter cleaning and HEPA filter are available under request. Thus filtering efficiency can reach up to 99,98 percent. Vacuum is attached to 200 liters barrel with hand crank tipper. 53 tank vacuum can vacuum liquids and wet waste simultaneously with dry dust.

Vacuum has forklift pockets and a large-wheeled trolley. Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Learn more

Power3600 W
Tank200 l
Underpressure250 mbar
Air flow10500 l / min
Sound level84 dB
Filter materialtetratex
Weight120 kg
Power supply16 A 230 V
DimensionsH 1870 W 850 L 1250 mm

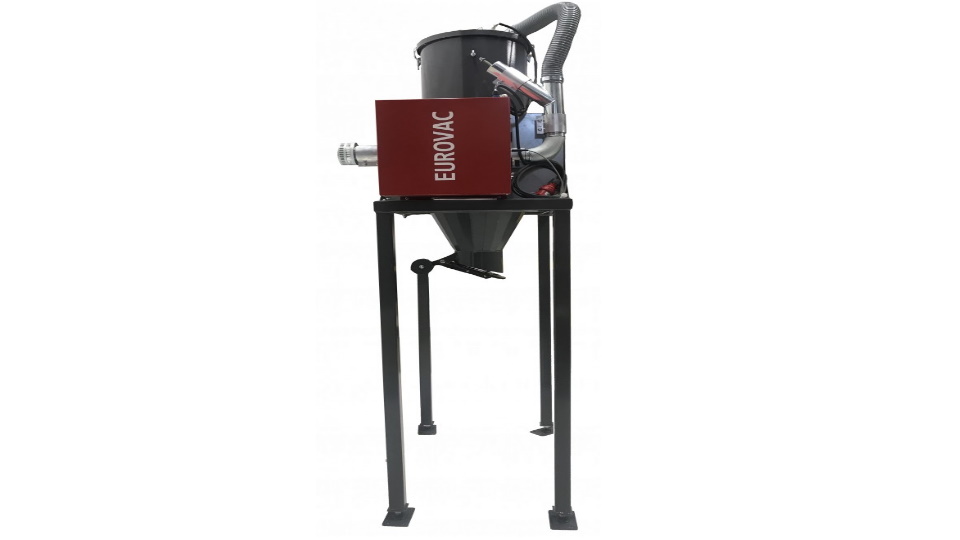

53 4800 with hand crank platform

Product code 003053

For dry and wet dust. Star shaped filter, with a surface area of 2 m². Suction hose Ø 50, 63 or 76 mm can be used.
Available with optional drain cock, float, shovel basket, HEPA 13 filtration and electric vibration cleaning of the filter by manual switch.
Also available with compressed air. Power cord length 8 m.

Learn more

Power1200 W
Tank15 l
Underpressure220 mbar
Airflow2800 l / min
Sound level78 dB
Weight8 kg
DimensionsH 1870 W 850 L 1250 mm

Blue line series

Product code 003062

Blue Line series of industrial vacuums for heavy duty vacuuming. Each Blue line vacuum’s suction is based on a powerful turbine motor without coal brushes. Vacuum is very durable for continuous use. Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Blue Line series vacuums have a star-filter with filtering area 4 m². available under request with a teflon filter. HEPA filter is available under request. Thus filtering efficiency can reach up to 99,98 percent. Blue Line series vacuums are especially designed for environments that need ensured pure outlet air flow.

Learn more

Blue Line 68

Power11000 W
Tank60 l
Underpressure280 mbar
Air flow17500 l / min
Sound level80 dB
Weight150 kg

Blue Line 69

Power25000 W
Tank60 l
Underpressure400 mbar
Air flow18500 l / min
Sound level80 dB
Weight200 kg

Blue line 200

Product code 018215

The Eurovac Blue Line 200 vacuum cleaner includes a filter unit, debris tank, side channel blower and starter with frequency converter.

The entire unit can be moved by forklift to the desired location. The unit can also be used as a suction unit for a central vacuum system.

As the filter part of the unit is equipped with its own lifting device, the 200 l waste tank can be easily removed from the unit and emptied by forklift.

The tank is also equipped with a tilting knife. This makes the unit suitable for vacuuming large quantities of even heavier dirt such as sand, metal scrap and shavings.

The filter is equipped with a compressed air filter cleaning system. The filter material is PTFE-coated polyester, making it resistant to small amounts of moisture.

– Equipped with one side channel blower.

Accessories
– Wheels
– Own air compressor
– Cleaning accessories as required

Power11 kW 400/32A (50 Hz)
AirflowTotal max 1050 m3/h (50 Hz) continuous working pressure max 250 mbar
Remote control 24 V, overfill prevention
CleaningAutomatic filter cleaning with compressed air
StartupDanfoss control centre with variable speed drive
DimensionsH 2000 W 1200 L 2000 mm

Blue line 1000 vacuum container

Product code 080008

Eurovac vacuum container can be provided with power range 3,6-25 kW. Vacuum containers have 600 liters waste containers with hydraulic side door. Suction unit has a star filter, filtration area 4 m². Under request available with accessories like auto-switch or season cover.

Eurovac vacuum container can vacuum e.g. construction waste, silicon dust, ash and metal cuttings. Container has forklift pockets and can be provided with wheels. Can be used with suction hoses sized up to 102 mm. Container vacuums are ideal for construction or demolition site. Can be emptied to open top container.

Technical data can be found in the brochure

Blue line 1000 TR tractor vacuum cleaner

Product code 009225

Eurovac Blue Line 1000 TR tractor vacuum cleaners use the tractor’s articulated axle for suction power.
recommended tractor power of at least 40kW. Thanks to the rotary piston unit
high suction power can be achieved even with a moderately small tractor.

The filter unit of the unit is equipped with 12 m² lamella filters.
The filters are cleaned manually by means of a shaker.
The 1500 litre waste tank is equipped with a hydraulically operated discharge hatch, so that
easy emptying. The suction units are equipped with 150 mm hose reels, recommended
the recommended suction hose size is 76-150 mm.

Learn more

Power40 kW
Tank1500 L
Underpressure490 mbar
m3/h1960
Weight1200 kg

Eurovac 53

Product code 003010

Special vacuum for heavy duty cleaning when suction power and sustainability is needed. Easy empty 60 liters waste barrel that can be also covered with waste bag. Vacuum has a star-filter with filtering area 2 m² and manual filter-shaker. With 53 Vacuum you can vacuum dry waste mixed with fluids without removing filter. Available also with HEPA filter. Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Learn more

Power3600 W
Tank60 l
Underpressure250 mbar
Air flow10500 l / min
Sound level84 dB
Filter materialtetratex
Weight85 kg
DimensionsH 1350 W 660 L 940 mm
Power supply16 A 230 V

Eurovac 53 battery vacuum

Eurovac battery-operated vacuum has Eurovac 53 barrel vacuum filtering system. Available with 4-wheeled trolley and forklift pockets. Trolleys have either tipping tank or hand crank tipper. Tipping tank can easily be emptied with forklift.

Eurovac battery-operated vacuums 1950 W motor produces 120 mbar pressure drop and ca. 6000 l/min airflow. Battery life is depending on vacuumable material. In everyday use battery life is about 1,5 hours and it takes 8 hours to charge fully.

Learn more

Power1950 W
Tank200 l
Underpressure120 mbar
Air flow6000 l / min
Sound level78 dB
Filter materialtetratex
Weight300 kg

Eurovac 53 small compressed air vacuum

Product code 003033

Compressed air vacuum cleaners for heavy-duty cleaning. Non-electric. Vacuum has easy empty 50 liters tank and a star-filter filtering area 1,5 m² with manual filter-shaker.

With 53 Vacuum you can vacuum dry waste and fluids without removing a filter. Thanks to the suction power you can use long suction hose sizes 38 or 50 mm.

Too small or long hoses reduce suction power.

Learn more

PowerPaineilma
Tank50 l
Underpressure400 mbar
Air flow3333 l / min
Sound level87 dB
Filter materialtetratex
Weight22 kg
DimensionsH 1020 W 510 mm
Recommended operating compressed airover 6 bar / 1200l/min

Eurovac 53 trolley

Product code 003040

Eurovac 53 Trolley is a new developed version of vacuum to be used in inaccessible environment. Vacuum is easy to move around thanks to firm but light trolley with large wheels.

Eurovac 53 Trolley can be equipped with 60 or 100 liters waste tank that can be covered with waste bag.

Eurovac 53 Trolley has a star-filter with filtering area 2 m² and manual filter-shaker. Under request available also with automatic self-cleaning filter.

With 53 Vacuum you can vacuum dry waste and fluids without removing a filter.

Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

HEPA filter is available under request. Thus filtering efficiency can reach up to 99,98 percent.

Available also with forklift pockets, which make the vacuum easy to move around.

Learn more

PowerCompressed air with 1 ejector
Tank60 l
Underpressure400 mbar
Air flow9000 l / min
Sound level84 dB
Weight85 kg
DimensionsH 1370 W 670 L 1130 mm

Eurovac 53 trolley compressed air vacuum

Product code 003021 / 003025

Compressed air vacuum cleaners for heavy-duty cleaning. Non-electric. Vacuum has a star-filter filtering area 1,5 m² with manual filter-shaker and easy-empty 60 liter tank that can be covered with waste bag.

Vacuum has a star-filter with filtering area 2 m² and manual filter-shaker. Available also with HEPA filter.

With 53 Vacuum you can vacuum dry waste and fluids without removing a filter. Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Too small or long hoses reduce suction power.

Eurovac 53 trolley with one ejector

PowerCompressed air with 1 ejector
Tank60 l
Underpressure400 mbar
Air flow9000 l / min
Sound level84 dB
Weight85 kg
DimensionsH 1370 W 670 L 1130 mm

Eurovac 53 trolley with two ejectors

PowerCompressed air with 2 ejectors
Tank60 l
Underpressure400 mbar
Air flow17000 l / min
Sound level85 dB
Weight90 kg
DimensionsH 1370 W 670 L 1130 mm

Eurovac 53 trolley bagged vacuum

Product code 003045

Eurovac 53 Trolley available also with Longopac™ system. Easy to mount and handle completely dust freely. Designed for vacuuming dry dust e.g. concrete and construction dust.

Under  request available with tank with steel cage attached to the pallet.

Vacuum has a star-filter with filtering area 2 m² and manual filter-shaker. HEPA filter is available under request. Thus filtering efficiency can reach up to 99,98 percent.00

Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Learn more

Power3600 W
Tank50 l
Underpressure250 mbar
Air flow10500 l / min
Sound level84 dB
Filter materialtetratex
DimensionsH 1670 W 680 L 1100 mm
Power supply16 A 230 V

Eurovac 53 tank vacuum

Product code 003038

Suction unit to be placed on top of the 200 liters barrel. Tank vacuum for any kind of waste e.g. liquids, shavings, ashes.

When vacuuming large amount of liquids the machine is equipped with a float body that shuts of the airflow through the machine when the maximum liquid level is reached.

Tank vacuum can be equipped with either a trolley or pallet.

Vacuum has a star-filter with filtering area 2 m² and manual filter-shaker. Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Learn more

Power3600 W
Tank200 l
Underpressure250 mbar
Air flow10500 l / min
Sound level84 dB
Filter materialtetratex
Weight42 kg
DimensionsH 1870 W 850 L 1250 mm
Power supply16 A 230 V

Eurovac 53 compressed air tank vacuum

Product code 003032

Suction unit to be placed on top of the 200 liters barrel. Tank vacuum for any kind of waste e.g. liquids, shavings, ashes.

When vacuuming large amount of liquids the machine is equipped with a float body that shuts of the airflow through the machine when the maximum liquid level is reached.

Tank vacuum can be equipped with either a trolley or pallet. Vacuum has a star-filter with filtering area 2 m² and manual filter-shaker. Thanks to the suction power you can use long suction hose sizes 38, 50 up to 76 mm.

Specifications:

Eurovac 53 with one ejector

  • Power: Compressed air
  • Tank: 200 l
  • Air flow: 9000 l/min
  • Pressure drop: 400 mbar
  • Feeding air pressure: minimum 8bar/1800l/min
  • Weight: 45 kg
  • Measures: 1400 (h), 580 (w), 780 (l) mm

Eurovac 53 with two ejectors

  • Power: Compressed air
  • Tank: 200 l
  • Air flow: 17000 l/min
  • Pressure drop: 400 mbar
  • Feeding air pressure: minimum 8bar/3600l/min
  • Weight: 45 kg
  • Measures: 1400 (h), 580 (w), 780 (l) mm

Too small or long hoses reduce suction power.

Learn more

PowerCompressed air
Tank200 l
Underpressure400 mbar
Air flow17000 l / min with two ejectors
Air flow9000 l / min with one ejector
Filter materialtetratex
Weight45 kg
DimensionsH 1870 W 850 L 1250 mm

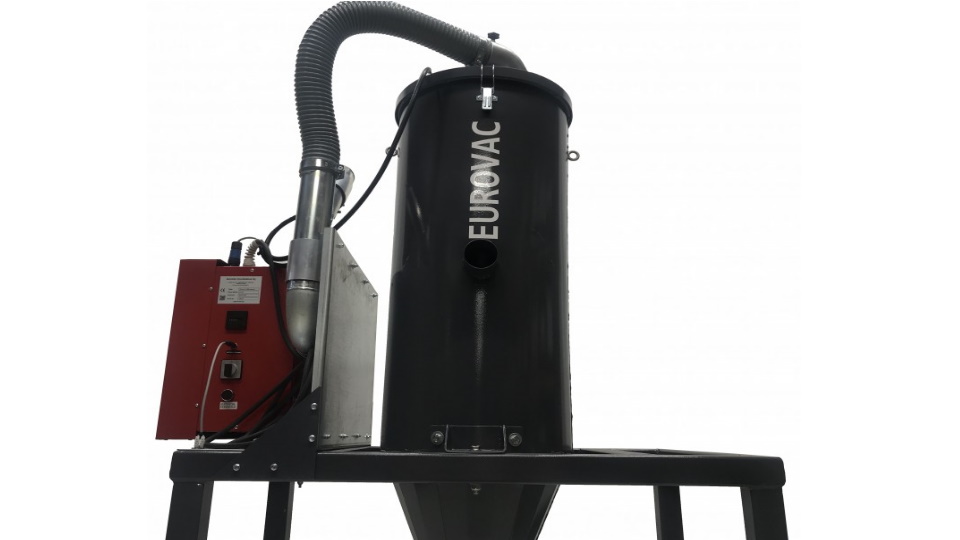

Eurovac 53 chip vacuum 4800

Product code 003067

The vacuum cleaner has been developed for vacuuming chips and chips from metal processing, as well as for vacuuming and recycling blasting grain and sand used in surface treatment.
The material to be vacuumed is discharged from the cyclone through a counterbalanced bottom flap into a collection container in use.

In the motor unit, the suction power is provided by four powerful motors. The motor unit is equipped with a control center, which also allows the device to be used as a central vacuum cleaner.

The filter in the vacuum cleaner is a star-shaped filter made of strong specially coated polyester with an area of about 2 m². The vacuum cleaner can also be equipped with electric vibration or compressed air cleaning.

The body of the vacuum cleaner has lugs on which it can be installed in many different places. We also manufacture mounting brackets according to the customer’s wishes.
More powerful options are also available.

Learn more

Electric power4800 W
Tank75 l
Underpressure400 mbar
Air flow7800 l / min
Filter materialtetratex
Weight100 kg
DimensionsH 1740 W 800 L 1100
Power supply16 A 400 V

Eurovac 53 chip vacuum compressed air

Product code 003068

The Eurovac 53 chip vacuum is suitable for vacuuming dry and solid material. At the bottom of the vacuum cleaner
is equipped with a drain valve which is mechanically operated by gravity.
Recommended working pressure with two ejectors: 8 bar/3600 l/min.
Recommended hose sizes: Ø 50 mm or 76 mm.

Learn more

PowerCompressed air with 2 ejectors
Tank75 l
Underpressure400 mbar
Air flow1700 l / min
Filter materialtetratex
Weight100 kg
DimensionsH 2598 W 800 L 1100

Learn more

PowerCompressed air with 2 ejectors
Tank175 l
Underpressure400 mbar
Air flow1700 l / min
Filter materialtetratex
Weight100 kg
DimensionsH 2098 W 800 L 1100

Eurovac Cube

Product code 080030

The Eurovac Cube is designed for areas where the amount of materials being vacuumed is large. The vacuum cleaner is suitable for example vacuuming ash.
The vacuum cleaner tank is divided into two parts so that the first part acts as a cyclone separator and the second part as a vacuum tank.
The equipment is equipped with a suitable suction unit and accessories, such as a front loader adapter, according to the customer’s wishes and needs.

Flatbed tank, emptying with a front loader. Capacity about 1700 liters.

Learn more

Electric power3600 / 4800 W
Tank1300 or 1700 l
Underpressure250 / 400 mbar
Air flow10500 / 7600 l / min
Weight400 kg
Filter materialtetratex

Eurovac 53 4800

Product code 003050

Powerful vacuum cleaner for applications where high suction power and durability are required. The appliance is equipped with a central vacuum cleaner as standard.

Star-shaped filter with an area of 2 m².

HEPA 13 filtration and electric vibration cleaning of the filter (manually from the switch) are available as accessories for the vacuum cleaner.

A suction hose with a diameter of 50, 63 or 76 mm can be used in the vacuum cleaner.

Learn more

Power4800 W
Tank60 l
Underpressure400 mbar
Air flow7800 l / min
Sound level84 dB
Filter materialtetratex
Weight100 kg
DimensionsH 1350 W 660 L 940
Power supply16 A 400 V 50 Hz

Eurovac 53 small vacuum

Product code 003017

A smaller version of the Eurovac 53 industrial vacuum cleaner. For dry and wet dust. Not suitable for vacuuming water.
Star filter, area 1.5 m². Recommended size of cleaning kit 38 or 50 mm.

Learn more

Power3600 W
Tank50 l
Underpressure250 mbar
Air flow10500 l / min
Sound level84 dB
Weight36 kg
DimensionsH 1070 W 650
Power supply16 A 230 V 50 Hz

Tipping vacuum

Product code 003017

The device is suitable for vacuuming many different types of debris, such as construction waste, concrete dust, ash and metal chips.

A suction hose of up to 125 mm can be used as a suction hose and can be connected as a central vacuum unit to a central vacuum line of up to 127 mm, depending on the power option.

All units are equipped with remote vacuum start readiness.
The filter unit can be equipped with different power options from 22 to 55 kW. Filter cleaning is performed by the suction unit on its own, based on counter-suction in three filter blocks timed separately. The design achieves very efficient filter cleaning even during continuous use.

The waste bin has a 1000 l skipper, which is very easy
empty with a forklift. In this case, the top of the unit is lifted hydraulically and the skipper is emptied with a forklift. All hardware
can also be moved with a fork spike fit.

The device can also be equipped with an ATEX-certified pressure relief membrane or flame arrestor if potentially explosive dust is sucked into the device. In addition, the equipment can be equipped with fire extinguisher equipment.

Learn more

Powermax mbarm3/hPower supply
22 kW500138063A / 400V
30 kW500168063A / 400V
37 kW5001800125A / 400V
45 kW5002100125A / 400V
55 kW5002250125A / 400V

Title

Did you have any questions?

Leave a message and we’ll get back to you as soon as possible.

© Suomen Imurikeskus Oy

Homepages: Velhovisio

Go to Top
